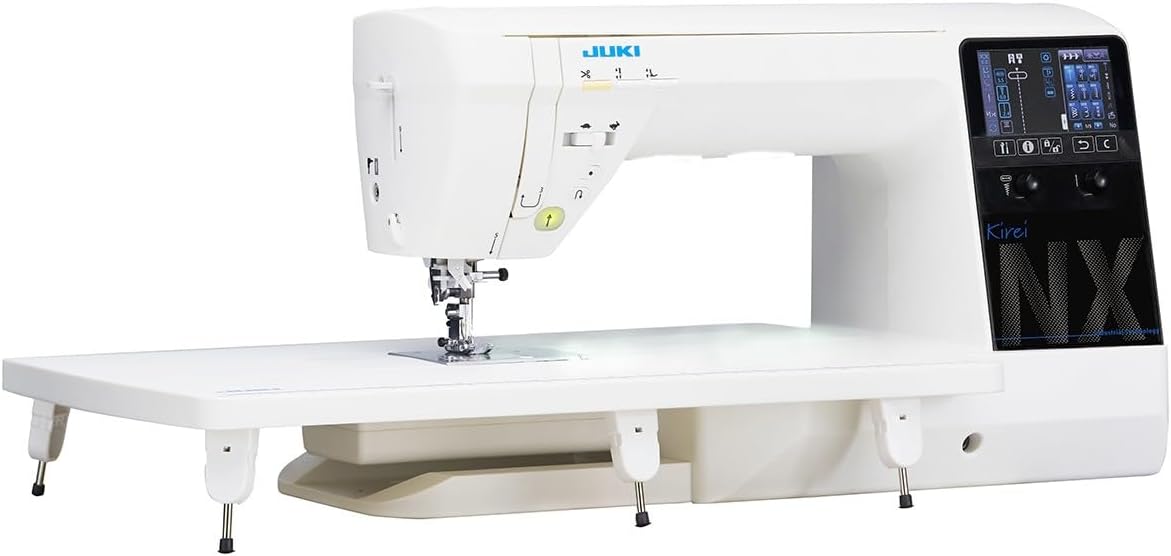

Juki Kirei HZL-NX7 Computerized Long Arm Sewing and Quilting Machine
Product Description
Juki HZL-NX7 Kirei Computerized Long Arm Sewing and Quilting Machine
The Next Generation: A step forward for Sewing with the Juki Kirei HZL-NX7
Wide sewing area, touch screen interface and a multitude of other functions. The HZL-NX7 computerized sewing and quilting machine is made for professionals who need a reliable, high quality machine.
Equipped with new functions to bring sewing to the next level and into a new dimension!
Key Features
NEW Interchangeable Single Needle System
Users can now create perfect straight stitches with the revolutionary Single Needle System. Using the provided t-screwdriver, users can "pop" the standard feed dog and throat plate out to install the System. Then, attach the presser foot for an exclusive straight stitch experience and achieve precise sewing known previously only to JUKI industrial sewing machines.
NEW Equipped With Juki Smart Feed (JSF)
Additionally, users can engage the JUKI Smart Feed (dual feed function) to move in sync the top and bottom layer of fabric. Perfect for points, precision, and quilt layers. Please note that the presser feet with the square gap at the end can be used with JSF.
NEW Foot Lift Function
The Kirei HZL-NX7 is also equipped with a micro-lifter presser foot function. This function reduces uneven sewing on quilts and velvets. When the presser foot is raised, the feed dogs automatically lower for easy placement of fabrics. Users can also sew appliques with the pivot function.
Color touch panel
Check settings and sewing conditions numerically and graphically. The various settings can be specified intuitively.
Ease of Access
Choosing a specific type of pattern just became easier.
Bobbin thread counter
The amount of bobbin thread used is counted based on the stitch length and number of stitches sewn.Bobbin thread breakage can be prevented since you will be warned when 20% of thread remains.
Thread tension setting optimized for the pattern
The thread tension most suitable for the pattern and stitch length will be set.Sew beautiful seams without shrinkage even when sewing fine or dense stitching.
Guide
From touch panel, view instructions for main machine operations.Specify basic settings without even looking at the Instruction Manual.
JUKI dual feed
The dual upper feed dogs can be installed and removed in a single step.The dual-feed design prevents uneven feeding and bunched stitching.
Throat plate with guide
An angle scale is provided in addition to a fine guide scale.Sewing at an accurate position from the fabric edge as well as piecing are both made easy.
Electronic knee lifting control mechanism
Raise the presser foot with a light knee operation.
Electronic feed dog controlmechanism
Raise and lower the feed dogs from the touch panel. When the presser foot is raised, the feed dogs are lowered. In addition to allowing switching to free-motion sewing without removing the table, fabric can be smoothly removed without damage. Check settings and sewing conditions numerically and graphically.The various settings can be specified intuitively.
Empty heading
All accessories can be stored in the accessory box and are immediately available when needed.
For High Performance Sewing
More Functions and Accessories
Foot Switch Function
Allowing for greater versatility, Juki now offers assigned foot control options. With the ability to assign function to the heel side of the foot controller you can now lift the presser foot, trim threads, reverse stitch or single stitch by pressing on the heel side of the foot controller. Also allowing for no special settings you have complete control to customize your machine to best fit you.
Presser Foot Pivot Function
When you stop sewing, the needle stops in the down position and presser foot automatically lifts to allow for fabric movement. Sew corners or pivot with ease, when you resume sewing the presser foot automatically lowers for continuous smooth sewing. This function can also be switched off.
Empty heading
The dials make it easy to adjust the stitch width and length (roughness) as well as the needle position (stitch baseline). The dials also allow you to make subtle adjustments to the stitch width and length while sewing.
Free-motion sewing/Sewing using a ruler
Since the feed dogs can be lowered from the touch panel, you can easily switch to free-motion sewing.The transparent and ruler-compatible quilt presser foot that is included provides even more quilting possibilities.
Stitch adjustment/needle position dials
The dials make it easy to adjust the stitch width and length (roughness) as well as the needle position (stitch baseline). The dials also allow you to make subtle adjustments to the stitch width and length while sewing.
Improved stitch patterns
In addition to the conventional horizontal (left/right) flipping, you can also use vertical (up/down) flipping to express even more with a single stitch pattern. In addition, as the number of stitch patterns with an adjustable baseline has increased, so has the size of patterns as well as the degree of freedom in the sewing position.
Thick denim folded into three layers for a flat fell seam
Evenly sews thick fabrics effortlessly.
Box Feed - Juki Industrial Sewing Machine Technology
Stay in contact with your fabrics longer for a consistent, reliable seams every time. The Juki industrial "BOX Feed" system has been brought to the home sewing machine. Our BOX Feed allows you to create perfect high-quality stitches on all types of fabrics.
Stitching thin fabrics
No fabric shrinkage even sewing on light weight cotton.
Stitching towel fabrics
Evenly feeds hard-to-sew high pile fabrics.
Float Function Prevents Uneven Seams
You can sew with the presser foot slightly floated.
Using the float function
The standard presser foot is used in both cases.
Not using the float function
Pressure on layers create uneven seams.
Easily Create and Enjoy Beautiful Buttonholes with Juki's Combination of Industrial Background and Modern Technology
Use the buttonhole sensor system for optimal feed on all types of fabric. You will love the one step buttonhole as it measures and evenly sews on both the right and left sides. Automatically works in optimum order for a perfectly finished buttonhole.
Buttonhole foot
Buttonhole sewing presser foot contains a clamping plate
The buttonhole sewing presser foot contains a clamping plate, so you can confidently feed fabrics by holding them between the clamping plate and the presser foot.
20 types of buttonholes
20 types of buttonholes are available for your needs.
Cutting width adjustment of the buttonhole
Now it is possible to adjust the cutting width in 3 steps.
Specifications
| Control System | Computer |
| Number of stitch patterns | 351 |
| Number of available fonts | 4 |
| Buttonhole | Automatic (sensor system) with clamping plate |
| Start/stop button | Green: Ready to start and/or while sewing Red: Not ready to start Orange: When the lock stitch button is pressed while the sewing machine is engaged in pattern sewing. |
| Maximum stitch speed | 1,050 sti/min |
| Number of available fonts | 4 |
| Auto thread trimming | Automatic simultaneous needle thread and bobbin thread cutting |
| Automatic needle threader | Yes |
| Thread tension system | Automatic |
| Automatic lock stitch | Automatic lock stitch and thread trimming |
| Feed mechanism | Box Feed mechanism |
| Dual feed function | For sewing shirring, etc., and preventing bunched stitching |
| Presser foot pressure adjustment | Stepless adjustment (digital) |
| Drop feed | Retractable feed dogs for free motion and button-stitching. For bobbin winding simply by winding thread around the bobbin without passing through the hole in the bobbin |
| Bobbin thread winder | Bobbin winder with independent motor |
| Quick bobbin preparation | Start sewing by simply passing the thread through a guide, without needing to pull the bobbin thread |
| Light | Counts the amount of bobbin thread used based on the stitch length and number of stitches sewn |
| Number of stitch patterns | 6 LED lights |
| Function to straight-line stitching | Straight stitch throat plate, straight stitch feed dogs and straight stitch presser foot |
| Micro-lifter | Presser foot pressure settings by icons |
| Free arm | Removable auxiliary bed for easy sewing in hard to reach areas such as sleeves,hems and necklines |
| Change in the length/wide of stitches | Dial system/LCD numerical display Stitch width: Max. 7 mm Stitch length: Max. 5 mm |
| Number of needle positin(straight stitch/other than srtaight stitch) | 37/According to pattern |
| Pattern(right and left)reverse | Up/down and left/right |
| Twin needle sewing | Optional twin needle |
| Elongation Pattern | Change the overall length without changing the sewing density of the pattern |
| Adjustable Starting / Reverse Stitch Speed | Adjustable start/reverse/knot stitch speed |
| Needle up/down button | For switching between raising and lowering the needle |
| Low-speed inching sewing | For sewing at an extremely slow speed at the press of a button |
| Needle stop position switching | For switching the needle to either the raised or lowered position when the machine is stopped |
| Presser Foot Pivot Function | Function to automatically raise the presser foot when the needle is stopped in the lower position when stopping sewing |
| Save/call of patterns | 10 patterns |
| Height of lifting of presser foot (1 step/2 steps) | Press the black button on the standard presser foot to hold it in a horizontal position at the start of sewing thick fabrics |
| Quick bobbin preparation | Button system: 6810mm/12mm Lever system: 6mm/12mm Knee-lifting Lever system: 6810mm/12mm |
| Lock mode | For disabling all operations when the machine is turned on |
| Soft case | Case to protect the sewing machine from damage and dust |
| Knee lifting lever | Included (electronic knee lifting control mechanism) |
| Wide table | Table to expand the work space of the sewing machine |
| Foot Controller | Included (with separate foot switch) |
| Accessory case | Storage case for small accessories including presser feet |
| Accessories | Standard presser foot (A)/Straight stitch presser footS/Zipper presser foot (B)/Overcasting presser foot (C)/Blind stitch presser foot (D)/Buttonhole presser foot (E)/Manual buttonhole presser foot (I)/Open toe presser foot (O)/Patchwork presser foot (P)/7mm presser foot7/Quilt presser foot(for Ruler) (Q)/Throat plate for straight stitch/Straight stitch feed dog/Touch pen/Bobbin (4)/Needle set HA X 1 # 11 (1):# 14 (1):# 16 (1):for knit # 11 (1)/Quilt guide/Auxiliary spool pin/T-shape screwdriver/Ripper/Cleaning brush/Spool cap (large)/Spool cap (Middle)/Spool cap (Small)/Foot Controller/Knee-lifting lever/Power cord/Wide table/soft case/Instruction manual |
| Dimensions(mm) | 17.5"(W) x 11.4"(H) x 8.27"(D) /445(W) x 290(H) x 210(D) mm |
| Arm size | 11.9"(L) x 4.7" (H) |
| Weight | 14.1kg/ 31.08lbs |
