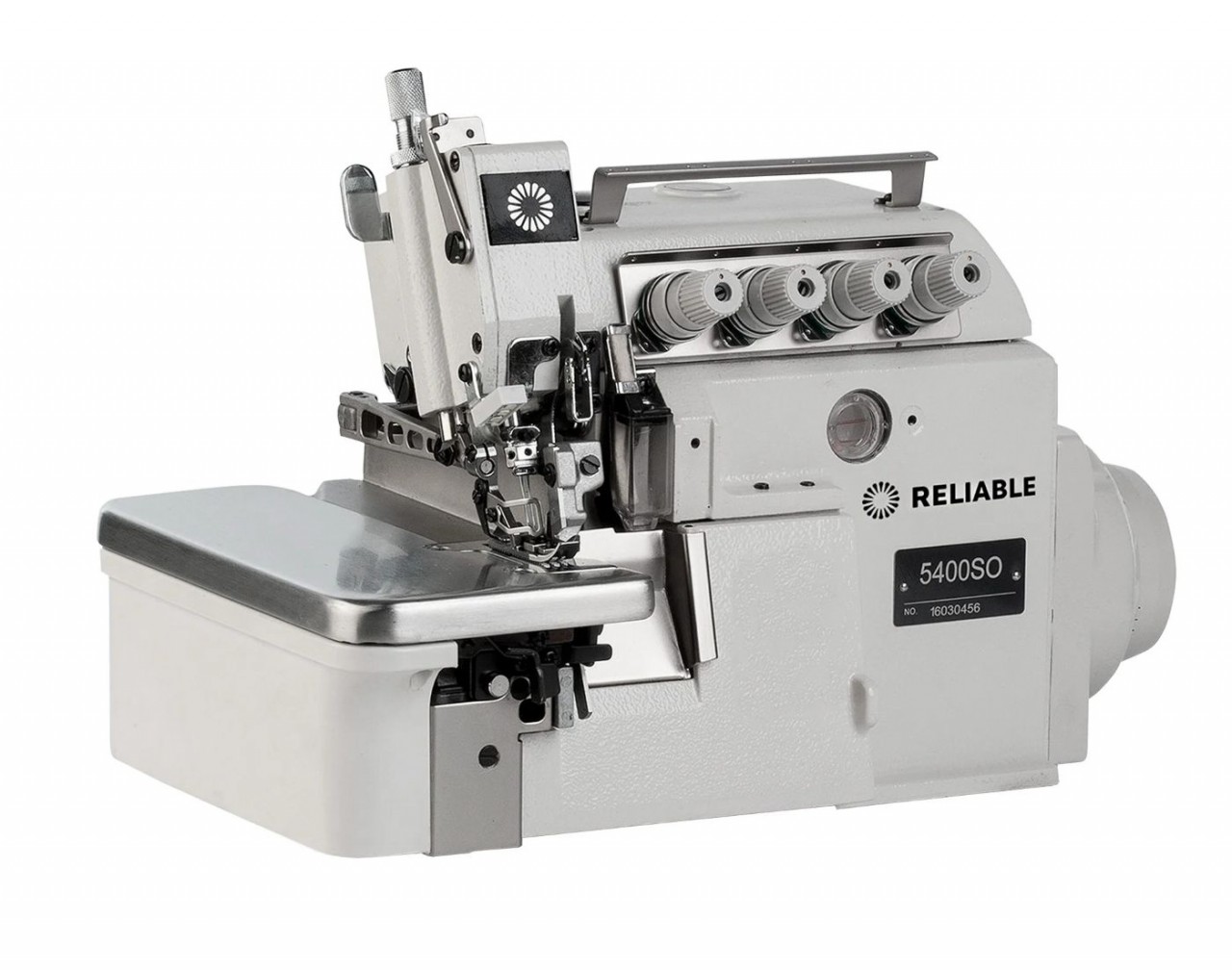

Reliable 5400SO 3/4 Thread Direct Drive Serger With Table and Servo Motor
Product Description
Reliable 5400SO 3/4 Thread Direct Drive Serger With Table and Servo Motor and Uberlight 3100TL Light Lamp
Fully Assembled Table & Motor Included
For joining two or more plies of fabric together (3 or 4 threads), or for overedging (3 threads), the 5400SO is a machine with a lot of versatility. It produces a soft seam, even at high speeds, and is suitable for light to medium weight fabrics. This version is semi-submerged.
For sewing all kinds of woven and knit fabrics, the 5400SO with differential feed, stitch length regulator and fully automatic lubrication offers the whole package. Low noise and vibration design, outstanding build quality and reliability.
Key Features
Control Panel
Programming your 5400SO is simple with the digital control panel. Situated within reach, the motor can be programmed for your required speed.
Direct Drive Motor
The 5400SO harnesses the latest technology with a built-in servo motor. This motor allows for quiet and smooth operation.
Differential Feed
The 5400SO is equipped with a differential feed to allow for sewing stretchy (knit) fabrics.
Threading Diagram
Flipping open the front cover reveals the color-coded threading diagram.
Tension Dials
Tension dials are mounted on the front of the 5400SO so you can easily adjust for the ideal stitch.
Automatic Lubrication
When running, the oil-window on the top of the head indicates that the machines internal pump system is working.
6000SM Servomotor
Getting the performance you want out of a sewing machine requires the right motor. The fourth generation SewQuiet 6000SM servomotor is the benchmark in the industry.
Superior Stand
Others skimp on the stand components, we don’t. We use only 100% plywood in our tabletops (not cheap particle board) and our K-legs are made from heavy-duty 3/32" steel.
Features
- Built-in direct drive motor with digital control panel
- Built-in LED operators lamp
- Heavy-duty K-legs and table
- Instruction/parts manual included
- Tool kit, drawer and thread stand included
- Individually tested and sewn-off before shipping
Specifications
- MAXIMUM SEWING SPEED - 6,500 RPM
- PRESSER FOOT LIFT - 5.5 mm
- MAX STITCH LENGTH - 3.8 mm
- NEEDLE GAUGE - 2 mm
- OVEREDGING WIDTH - 4.5 mm
- DIFFERENTIAL RATIO - 1:08 – 1:19
- NEEDLE BAR STROKE - 25.5 mm
- NEEDLE SYSTEM - # B27
- ADJUSTABLE EDGE GUIDE - Yes
- LUBRICATION - Automatic
- COUNTRY OF ORIGIN - China
- WARRANTY - Limited 1 year
Included Uberlight Flex 3100TL LED Task Light Lamp with Clasp
Uberlight Flex 3100TL LED Task Light Lamp
The new UberLight™ Flex offers complete control. With nine total light settings and 40% more luminous efficiency, the new UberLight™ Flex delivers up to 240% more lumen power than our previous model. The UberLight™ Flex’s 26.5” silicone gooseneck can hold virtually any shape. Anywhere. Anytime. Includes USB connectivity and power brick for portability and a 270° rotational head for precision control.
- ELECTRICAL 5V USB: Includes 120V Adaptor
- C-CLAMP: Adjustable to 2.125”
- ENERGY CONSUMPTION: 2W / 4W / 6W
- HEAD: 270° rotation
- NECK: 26.5” silicone
- COLOR TEMPERATURE: 2700K / 4000K / 5000K
- LUMENS: Up to 600
- CORD LENGTH: 6’ USB
- HOURS OF USE: Up to 60,000 hours
- CERTIFICATION: cETLus Certied
- NET WEIGHT: 2.4 lb 1.1 kg
- PRODUCT DIMENSIONS: 37.5” x 7.5” x 1.5” 95 x 19 x 3.8 cm
Warranty Information
Reliable Corporation warrants to original purchaser of its products that every product sold by Reliable is free from defects in material and workmanship for a period of one (1) year from the date of purchase.
