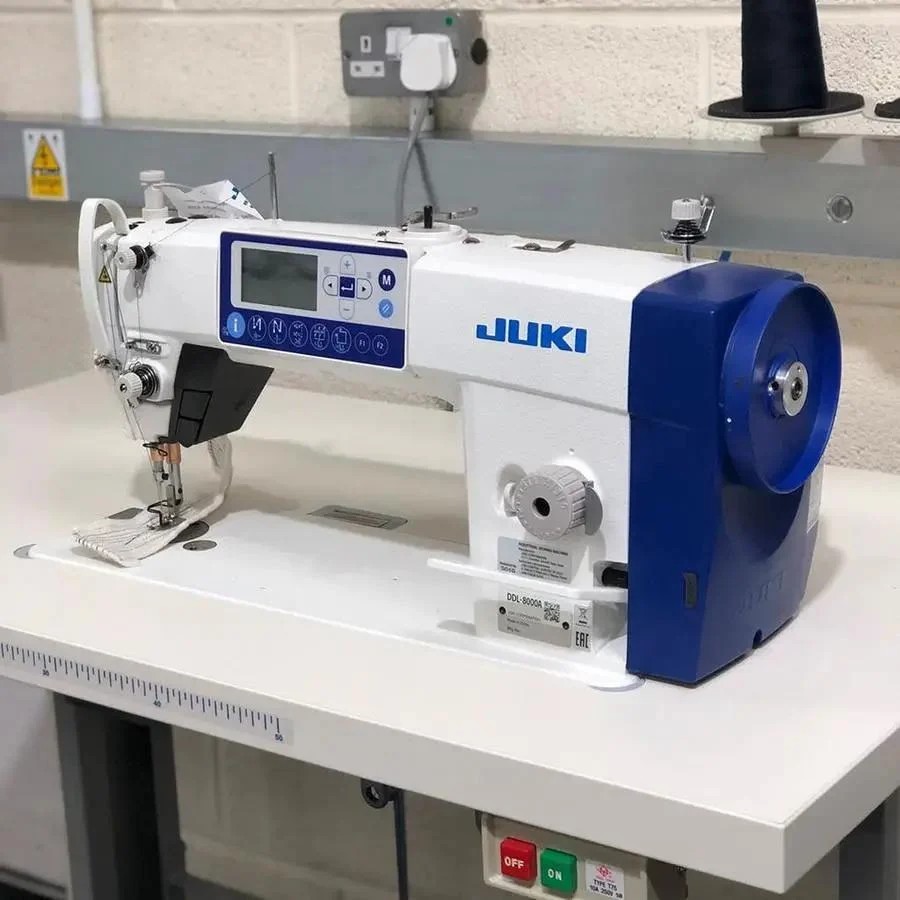

Juki DDL-8000AS-MS Direct-drive Lockstitch Machine with Automatic Thread Trimmer and Auto Lifter

The DDL-8000A Series maintains JUKI's established seam quality and is provided with narrowed-down essential and simplified functions. It helps improve the work efficiency through operator assistance with its audio guidance.

The DDL-8000A Series of sewing machines use two different lubricating methods.

Lubrication in the frame is the main cause of oil stains on the products. The DDL-8000A Series [M] type has incorporated the semi-dry head with the frame which does not need lubrication. In addition, the DDL-8000A Series [S] type has adopted the minute-quantity lubrication system. Both come in two type; the standard type and the shorter-thread remaining type. The DDL-8000A Series of sewing machines are friendly to environments.

Semi-dry head type

Sewing work free from oil stains by means of our leading-edge dry-head technology. With the advanced dry technology of enabling operation without being lubricated, a frame which does not need lubrication has been developed. It is provided with not only a high-speed sewing capability, but also a safety feature for preventing oil stains

Voice guidance for assisting the operator (newly-developed LCD panel)

This sewing machine is provided as standard with the voice guidance with clock function.

Production support function

The target number of products, work progress (current number of products produced, achievement rate) and the operating rate of the sewing machine are displayed on the control panel provided that the initial data have been properly set. These pieces of data that provide an indication for the operator will contribute to enhanced production support. Since the USB port is provided as standard for the operation panel and control box, sewing data can be managed and the relevant software can be upgraded with ease.

Automatic turning OFF function of the operation panel backlight

The backlight of the operation panel is automatically turned OFF when the operation panel is not operated for a certain period of time. (Setting time: 1- 20 minutes)

Built In LED Light

Illuminance of the LED light is adjustable in five levels. It can be adjusted to the illuminance to help the operator to easily carry out work around the needle, thereby helping increase work efficiency.

Specifications

• Specification: Standard type
• Application: Medium-weight
• Max. sewing speed: 5,000 Stitches per Minute
• Max. stitch length: 5mm
• Power Consumption: 330VA
• Lift of the presser foot by hand: 5.5mm
• Lift of the presser foot by auto lift: 15mm
• Needle (at the time of delivery): DB×1 (#11) #9~18 (134Nm65~110)
• Lubrication: Semi-dry
• Lubricating oil: JUKI Machine Oil 7 (equivalent to ISO VG7)
