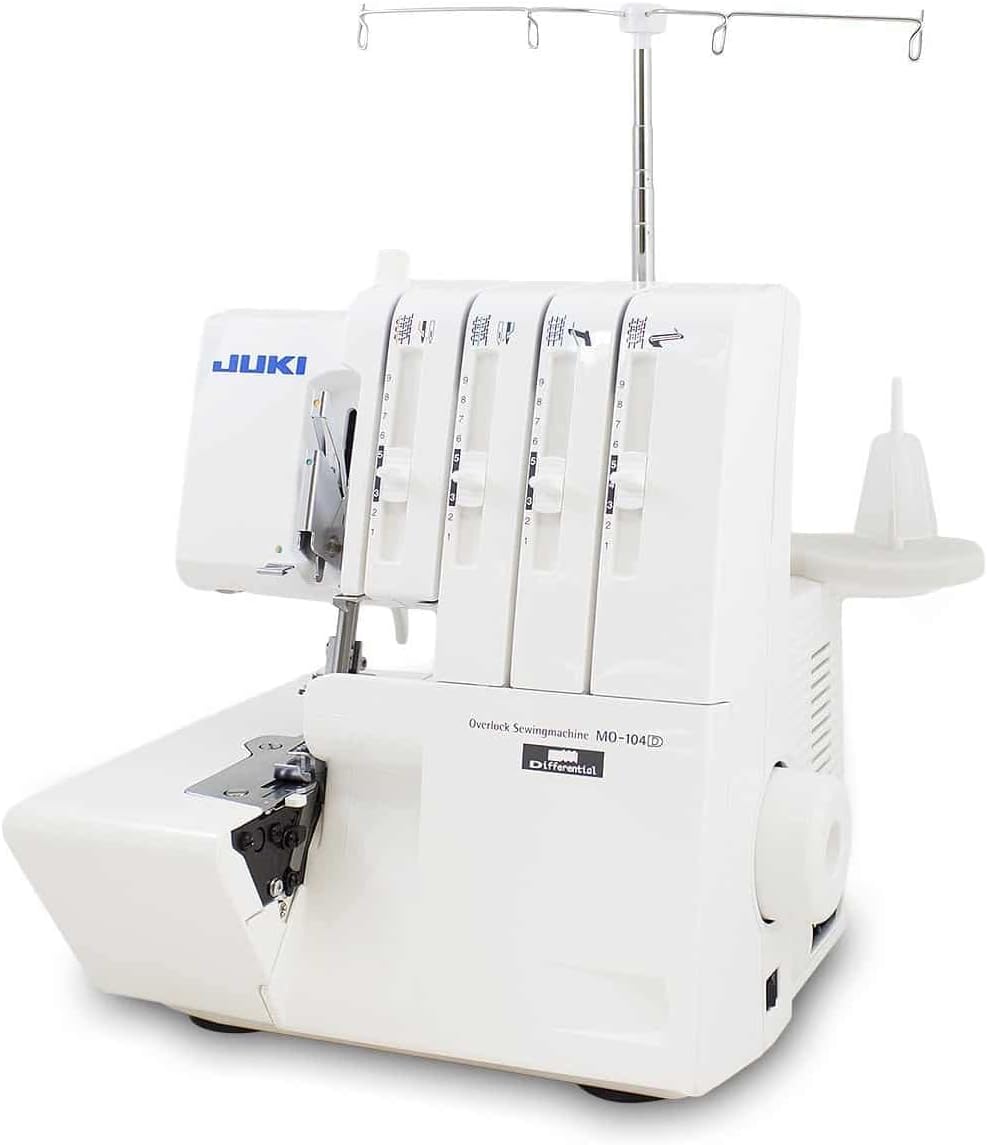

Juki MO-104D Overlock Serger Machine
Product Description
Juki MO-104D 2/3/4 Thread Overlock Serger Machine
Features of the Juki MO-114D Serger Overlock Machine 3, or 4 Thread Stitching Lay in Tension System Universal throat plate allows you to go from standard serge to roll hem with the flip of a switch Adjustable cutting width Left needle 5-7mm Right needle 3-5mm Rolled hem 1.8-2.2mm Adjustable stitch length 1-4mm Differential Feed 0.7-2.0 Ratio Presser foot lift 7.5mm Adjustble presser foot pressure Sewing Light.
- 4-Thread Overlock
- 3-Thread Rolled Hem
- 3-Thread Narrow Overlock
Key Features
NEW Lay-in Type Thread Tension Slots
Lay-in type thread tension slots throughout the machine make threading is easy and efficient. No wrapping, just follow the color coded thread path.
Automatic Rolled Hemming
Automatic rolled hemming can be created quickly and easily with built-in fingertip control. There is no need to change the throat plate or foot.
Cutting Width
Cutting width can be adjusted quickly for perfect seams and rolled edges.
Adjsutable Stitch Length
Adjust stitch length by simply turning dial located on the inside of the machine, within the range of 1 to 4mm.
Differential Feed
Differential feed is easily controlled and adjusted by a dial located on the exterior left hand side.
Other Features
- Adjustable presser foot pressure
- Sewing light
- Upper looper converter (optional)
Specifications
- Number of threads - 2, 3 or 4 threads
- Needle - Schmetz 130/705H numbers 70, 80 & 90
- Standard overlock with
- Left needle 5-7mm
- Riht needle 3-5mm
- Rolled hem 1.8-2.5mm
- Stitch length - 1-4mm (standard 2.5mm)
- Differential feed - 0.7-2.0 ratio
- Presser foot lift - 5mm-7.5mm
- Sewing speed - max. 1500 stitches per minute
- Weight - 7kg (approx. 15.5lbs)
- Dimensions - 315 W x 290 D x 290mm H (approx. 12.4" x 11.4" x 11.4")
Included Accessories
- Electronic foot control
- Spool caps
- Tweezers
- Cleaning brush / needle inserter
- Nets
- Needle set 130 / 705
- Small screwdriver
- Oiler
- Accessory bag
- Dust cover
Warranty Information
Juki America, Inc. warrants this Product for a period of five (5) years against defective materials and/or workmanship, two (2) years on motors, light assembly, wiring, switches, speed control and electrical components.
