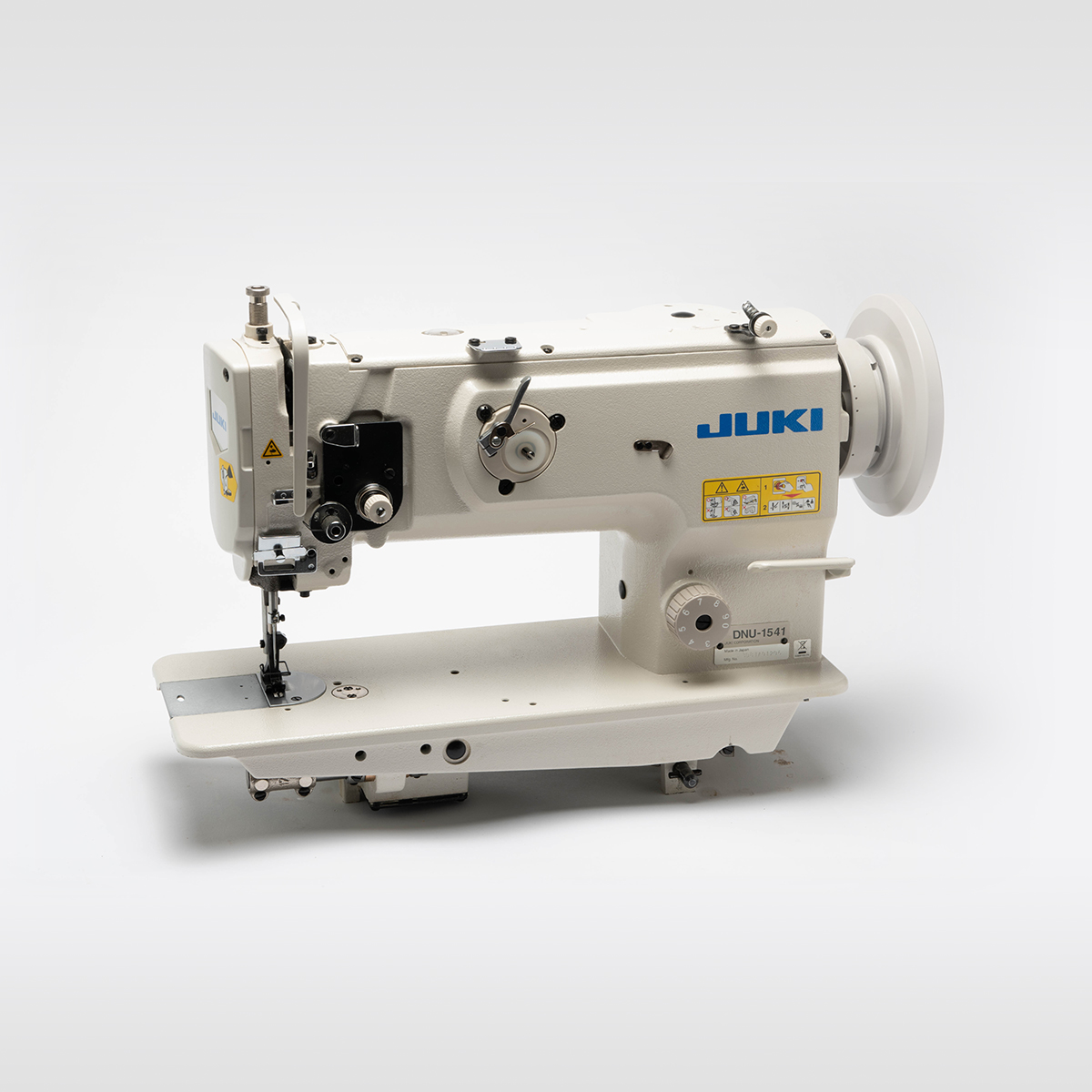

Juki DNU-1541 Single Needle Walking Foot Lockstitch Industrial Machine with Table and Motor

Home
Industrial Sewing Machines
Juki DNU-1541 Single Needle Walking Foot Lockstitch Industrial Machine with Table and Motor

Home
Juki
Juki DNU-1541 Single Needle Walking Foot Lockstitch Industrial Machine with Table and Motor

Juki DNU-1541 Single Needle Walking Foot Lockstitch Industrial Machine with Table and Motor

Price:

$2,440.00

SKU:

DNU-1541

Brand:

Juki

Condition:

New

Availability:

In Stock

Product Description

Juki DNU-1541 Single Needle Walking Foot Lockstitch Industrial Machine with Table and Motor

With its larger needlebar stroke, higher presser foot lift, and newly adopted double-tension mechanism, this Juki walking foot sewing machine for sale offers excellent sewing capabilities and responsiveness. The alternating vertical movements of the walking foot and presser foot are as large as 6.5mm. In addition, the ratio between alternating vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes. Thanks to this feature and the adoption of a new method of rectangular feed that prevents needle from fraying, the Juki walking foot machine sews multi-layered parts of a material with consistent stitching pitch while preventing stitch gathering.

Package includes a Fully Assembled Table & a Servo Motor

This Package includes a Fully Assembled Table and a Servo Motor.

Key Features

High-Speed Performance

The machine delivers increased productivity at sewingspeeds as high as 3,000 Stitches per Minute.

Excellent operability and maintainability.

The stitch length can be easily selected by the stitch dial. The machine's enhanced operability features include a clear view of the area around the needle, placement of the bobbin thread winder on the front face of the machine arm, and a large handwheel(160mm).

A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup. The machine’s full-open-type top cover design makes adjusting works easier.

The machine comes with a lubricating mechanism that uses a centralized oil wick. This substantially reduces the time and trouble required for oiling the machine. (Hook : automatic.) A walking foot mechanism is built into the machine arm to prevent oil from scattering.

Motor Options

Clutch motors operate at a fixed speed, typically between 1725 - 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

Some other advantages of the Servo Motor include:

They consume up to 90% less energy than clutch motors
1/3 lighter than clutch motors
Reverse motor rotation with the flick of a switch
Nothing to wear or adjust
Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don't require high speed stitching.
